Product Summary

The AD6900ABCZ-RL is a Loop-Powered 4–20 mA Sensor Transmitter which accepts low-level inputs from a variety of transducers to control a standard 4–20 mA, two-wire current loop.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: +36 V; (2)Reverse Loop Current: 200 mA; (3)Signal Amp Input Range: –0.3 V to VOP; (4)Reference Short Circuit to Common: Indefinite; (5)Auxiliary Amp Input Voltage Range: 0.3 V to VOP; (6)Auxiliary Amp Current Output: 10 mA; (7)Storage Temperature: –65℃ to +150℃; (8)Lead Temperature, 10 sec Soldering: +300℃; (9)Max Junction Temperature: +150℃.

Features

Features: (1)Instrumentation Amplifier Front End; (2)Loop-Powered Operation; (3)Precalibrated 30 mV or 60 mV Input Spans; (4)Independently Adjustable Output Span and Zero; (5)Precalibrated Output Spans: 4–20 mA Unipolar, 0–20 mA Unipolar, 12 ± 8 mA Bipolar.

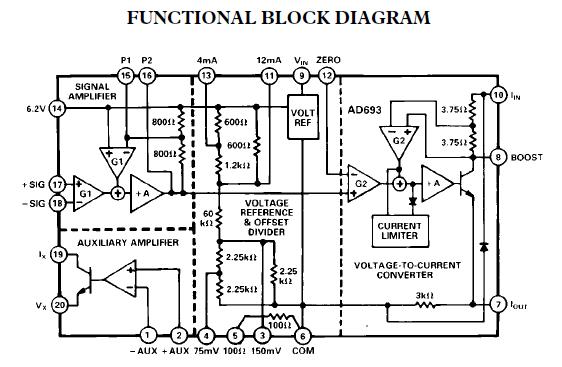

Diagrams

AD693
AD693
Other

Data Sheet
Negotiable
AD693AD
AD693AD

IC SGNL COND 4-20MA TX 20-CDIP
Data Sheet
0-1: $17.52
1-10: $16.20
10-100: $13.84
100-250: $12.70
250-500: $12.09
500-1000: $11.68
AD693AE
AD693AE

IC SGNL COND 4-20MA TX 20-CLCC
Data Sheet
0-1: $19.21
1-10: $17.77
AD693AQ
AD693AQ

IC TRANSMITTER 4-20MA 20-CDIP
Data Sheet
0-1: $11.38
1-10: $10.35
10-100: $8.79
100-250: $8.02
250-500: $7.50
500-1000: $6.90
AD694
AD694
Other

Data Sheet
Negotiable
AD694AQ
AD694AQ

IC SGNL COND 4-20MA TX 16-CDIP
Data Sheet
0-25: $8.97
