Product Summary
The HD6433825A28W is a single-chip microcomputer (MCU: microcomputer unit), which is built around the high-speed H8/300L CPU and equipped with peripheral system functions on-chip.
Parametrics
Absolute maximum ratings: (1)Power supply voltage: –0.3 to +7.0 V; (2)Analog power supply voltage: –0.3 to +7.0 V; (3)Programming voltage: –0.3 to +13.0 V; (4)Input voltage: Ports other than Port B, IRQAEC: –0.3 to VCC +0.3 V, Port B: –0.3 to AVCC +0.3 V, IRQAEC: –0.3 to +7.3 V; (5)Operating temperature: –20 to +75 ℃; (6)Storage temperature: –55 to +125 ℃.
Features
Features: (1)General-register architecture: Sixteen 8-bit general registers, also usable as eight 16-bit general registers; (2)Instruction set with 55 basic instructions, including: Multiply and divide instructions, Powerful bit-manipulation instructions; (3)Eight addressing modes.

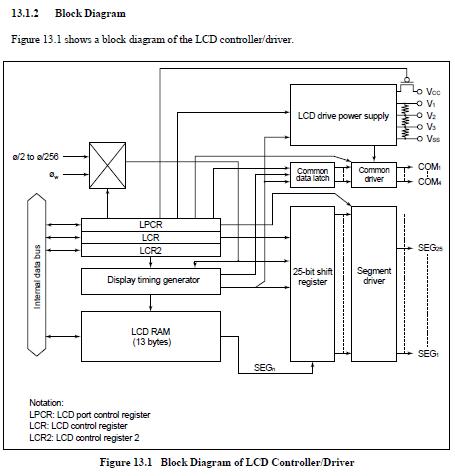

Diagrams
 |
