Product Summary

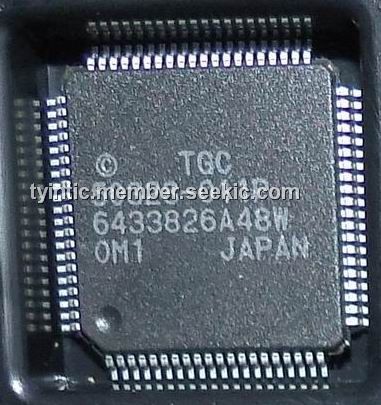

The HD6433826A48W is an 8-Bit Single-Chip Microcomputer. It comprises single-chip microcomputers equipped with an LCD (liquid crystal display) controller/driver.
Parametrics
Absolute maximum ratings: (1)Power supply voltage:-0.3V to +7.0V; (2)Analog power supply voltage:-0.3V to +7.0V; (3)Programming voltage:-0.3V to +13.0V; (4)Input voltage: Ports other than Port B:-0.3V to VCC+0.3V,Port B:-0.3V to AVCC+0.3V; (5)Operating temperature:-20℃ to +75℃; (6)Storage temperature:-55℃ to +125℃.
Features
Features: (1)General registers: Sixteen 8-bit registers (can be used as eight 16-bit registers); (2)Max. operating speed: 8 MHz; (3)Add/subtract: 0.25 μs (operating at 8 MHz); (4)Multiply/divide: 1.75 μs (operating at 8 MHz); (5)Can run on 32.768 kHz or 38.4 kHz subclock; (6)Instruction length of 2 bytes or 4 bytes; (7)Basic arithmetic operations between registers; (8)MOV instruction for data transfer between memory and registers; (9)Bit accumulator; (10)Register-indirect designation of bit position.

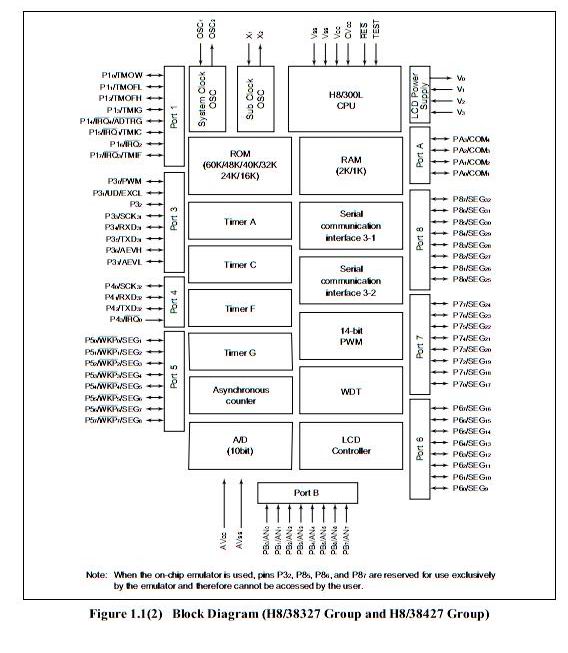

Diagrams
 |
