Product Summary

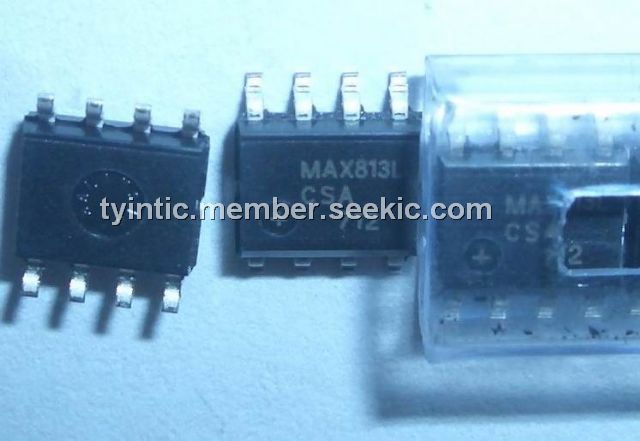

The MAX813LCSA+ is a microprocessor. It significantly improves system reliability and accuracy compared to separate ICs or discrete components.
Parametrics
Absolute maximum ratings: (1)Terminal Voltage (with respect to GND): VCC:-0.3V to 6.0V, All Other Inputs:-0.3V to (VCC + 0.3V); (2)Input Current: VCC:20mA,GND:20mA; (3)Output Current (all outputs):20mA; (4)Continuous Power Dissipation (TA = +70℃):471mW; (5)Operating Temperature Ranges:0℃ to +70℃; (6)Storage Temperature Range:-65℃ to +160℃; (7)Lead Temperature (soldering, 10s):+300℃; (8)Soldering Temperature (reflow): Lead(Pb)-free:+260℃, Containing Lead(Pb):+240℃.
Features
Features: (1)Available in Tiny μMAX Package; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor 4.65V in MAX813L; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible manual-Reset Input; (6)Active-High Reset Output; (7)Voltage Monitor for Power-Fail or Low-Battery Warning.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX813LCSA+ |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX813LCSA+T |
Maxim Integrated Products |
Supervisory Circuits uPower Supervisor |
Data Sheet |
|
|
||||||||||||
